Stainless steel Air Shower

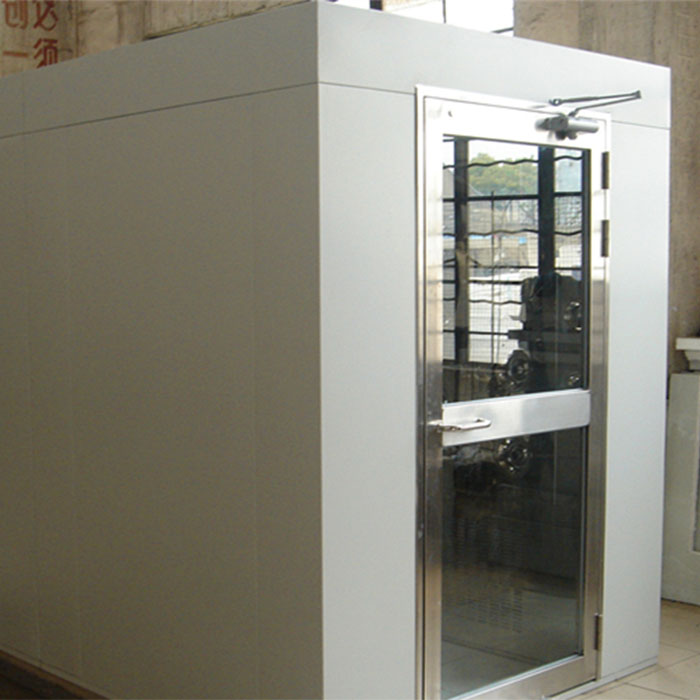

Laboratory 304 Stainless steel Air Shower



1.  Laboratory 304 Stainless steel Air Shower Feature

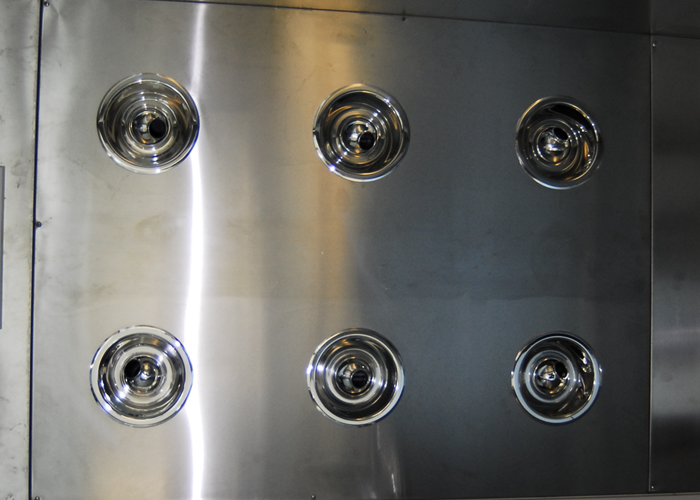

1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.

2. High quality infrared sensor automatically showering;

2. Time for showering can be adjusted from 0 seconds to 99 seconds, Adopts single-chip microcomputer control, LCD display working status;

3. Imported electronic interlock device, two doors can not be opened at the same time;

4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;

5. Standard of the modular design, make field assembly faster and more convenient maintenance.

6. But according to user needs and site condition transformation function and form.

2. Laboratory 304 Stainless steel Air Shower Application

Stainless steel Air Shower is generally used in electronics, food, medicine, hospitals, medical utensils, and other industries, it can act as an airlock and effectively reduce the pollution caused by people entering the dust-free workshop. The air shower room is a necessary passage for people to enter the cleanroom and plays the role of a closed clean room for the air valve room. It can reduce the pollution caused by people entering and leaving the clean area

3. Laboratory 304 Stainless steel Air Shower Size



MODEL

XR-AS-1P2S

XR-AS-2P2S

XR-AS-3P2S

External size W*D*H mm

1200*1000*2180

1200*2000*2180

1200*3000*2180

Internal size W*D*H mm

890*930*1910

890*1930*1910

890*2930*1910

Applied People

1~2

2~4

3~6

Material

304 Stainless steel

304 Stainless steel

304 Stainless steel

Exhuast Fan Power

380V/50Hz/110W*1

380V/50Hz/110W*2

380V/50Hz/110W*3

Air Capacity

1300 CMH

2600 CMH

3900 CMH

Fan Speed RPM

2800

2800

2800

Nozzle Numbers

12PCS

24PCS

36PCS

Nozzle Diameter

30 mm

30 mm

30 mm

Air Velocity

Over 25 m/s

Over 25 m/s

Over 25 m/s

Noise

Less than 62 dB

Less than 62 dB

Less than 62 dB

HEPA Efficiency

99.99% @0.3um

99.99% @0.3um

99.99% @0.3um

HEPA Pressure Drop

Less than 220 Pa

Less than 220 Pa

Less than 220 Pa

Lighting

1x Recessed LED

2 x Recessed LED

3x Recessed LED

Want To Get Laboratory 304 Stainless Steel Air Shower Datasheet Now
