Stainless Steel Fume Hood

Fume Cupboard

Stainless Steel Fume Hood Anti-Corrosion Laboratory Fume Cupboard

  1. Standard Size:

Model Optional

Length (mm)

Width (mm)

 Height (mm)



Model A

1200

850

2350

Model B

1500

850

2350

Model C

1800

850

2350

Customized model

Customized Length

Customized width

2350

*1. Above are standard size, customized available.

  2. Draught fan and pipeline are based on the installation site layout, excluded in the fume hood price.



2.Description:

Framework

made of high quality 316 / 304 stainless steel, has good performance of acid and alkali resistance and anti-corrosion.

Work top (Option)

made of high quality 316 / 304 stainless steel. Epoxy resin, chemical resistant laminate, ceremic and other materials are optional.

Inner lining:

made of high quality 316 / 304 stainless steel. Phenolic compact laminate, ceremic and other materials are optional.

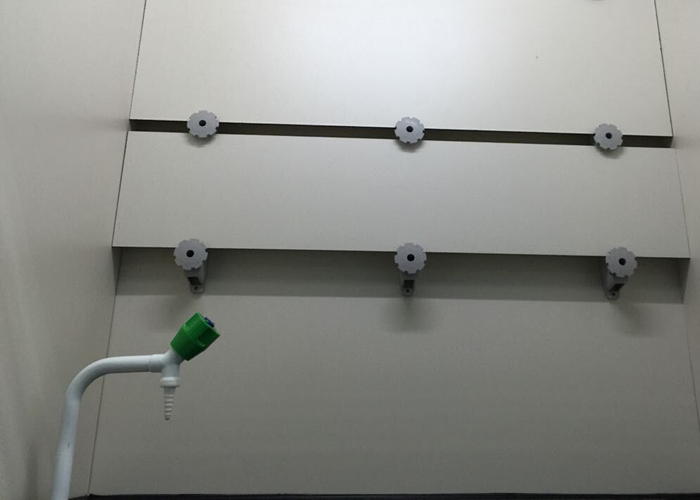

Air deflector:

made of high quality 316 / 304 stainless steel. Phenolic compact laminate, ceremic and other materials are optional.

Base cabinet:

made of high quality 316 / 304 stainless steel, has good performance of acid and alkali resistance and anti-corrosion.

Glass window:

tempered glass window can stop any place in the moving range.

Control plate:

LCD control plate, with control buttons include power switch, lighting, draught fan and indicator lights, equipment’s running conditions can be easily monitored on the control plate.

Water service parts:

PP sink, water faucet are optional.

fan

Draught fan and air duct are optional.
