Fiberglass Fume Cupboard

Fume Cupboard

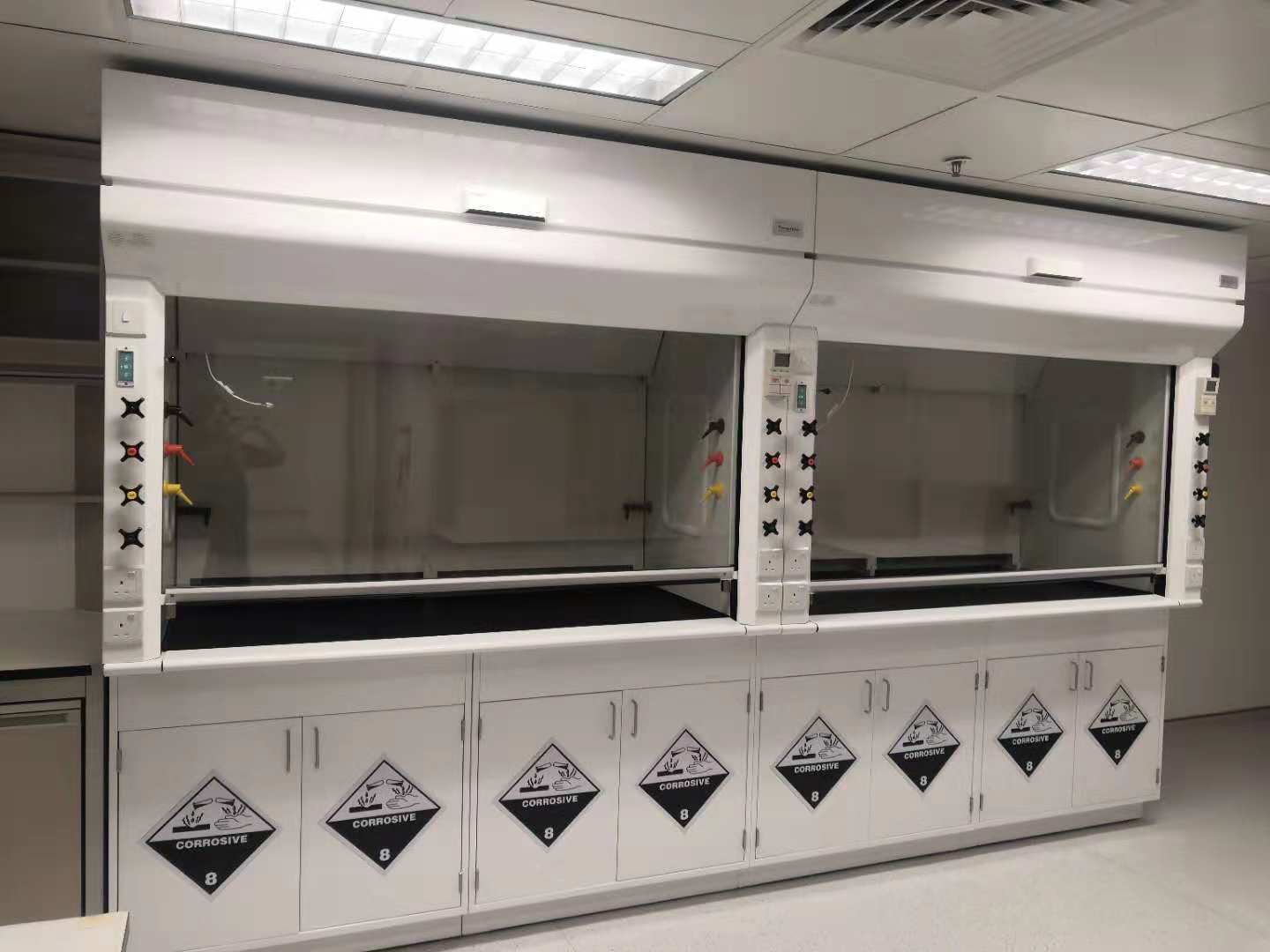

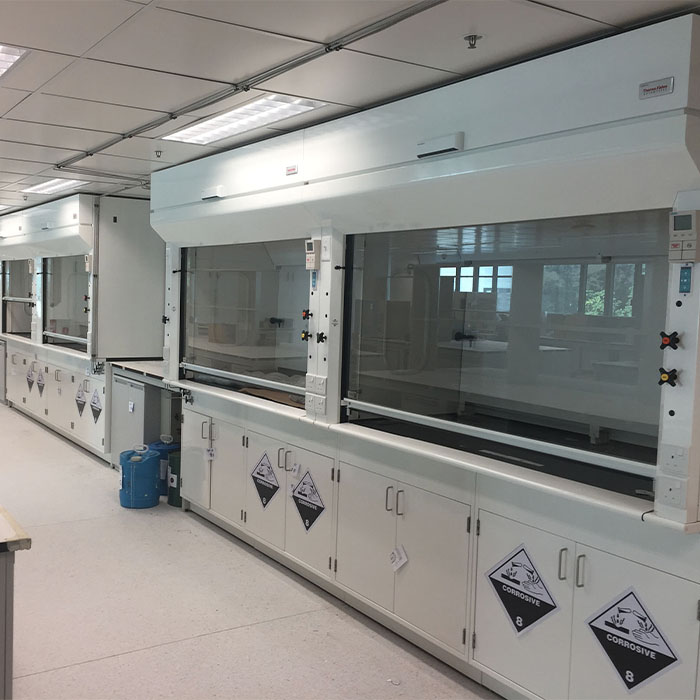

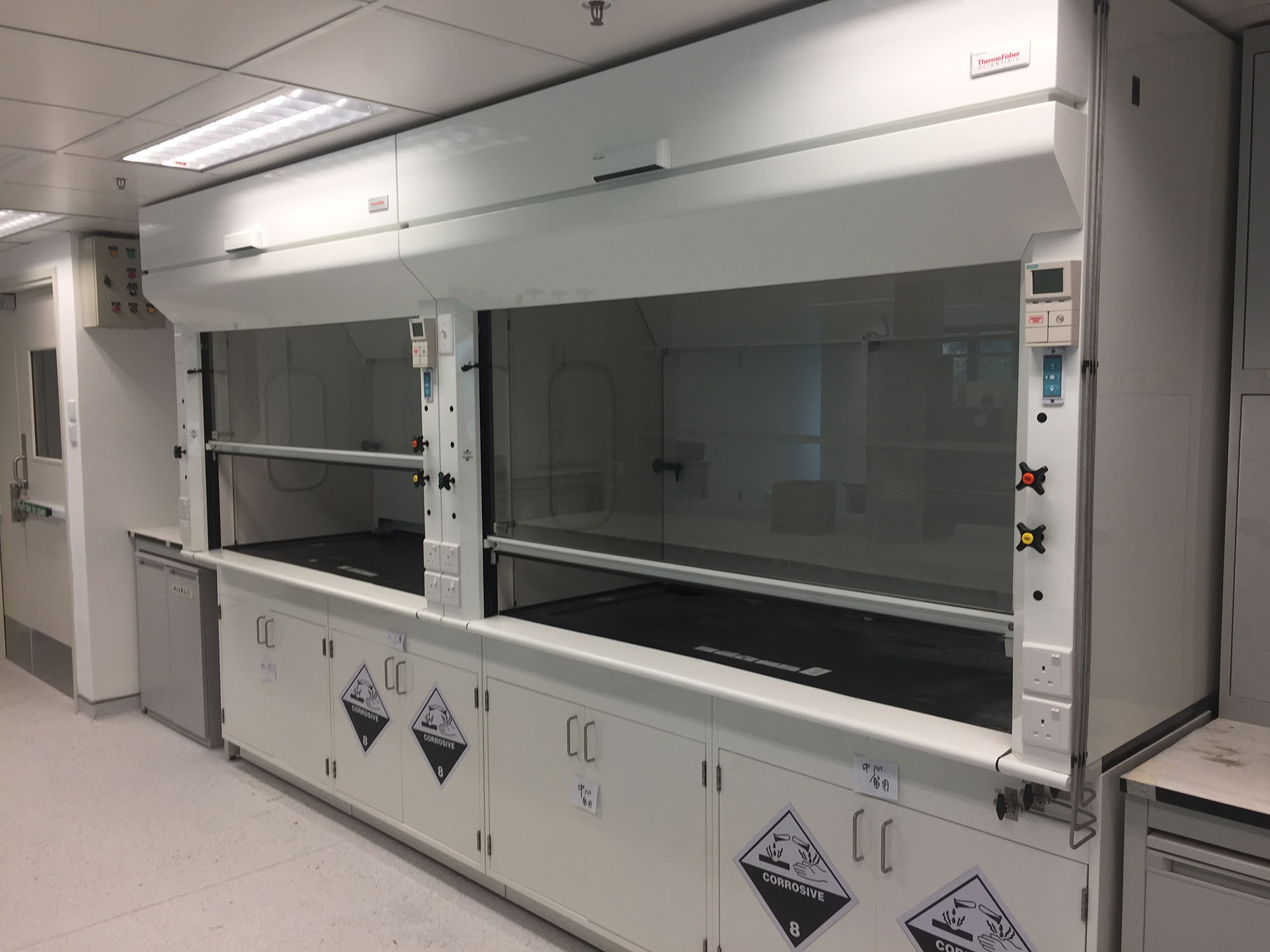

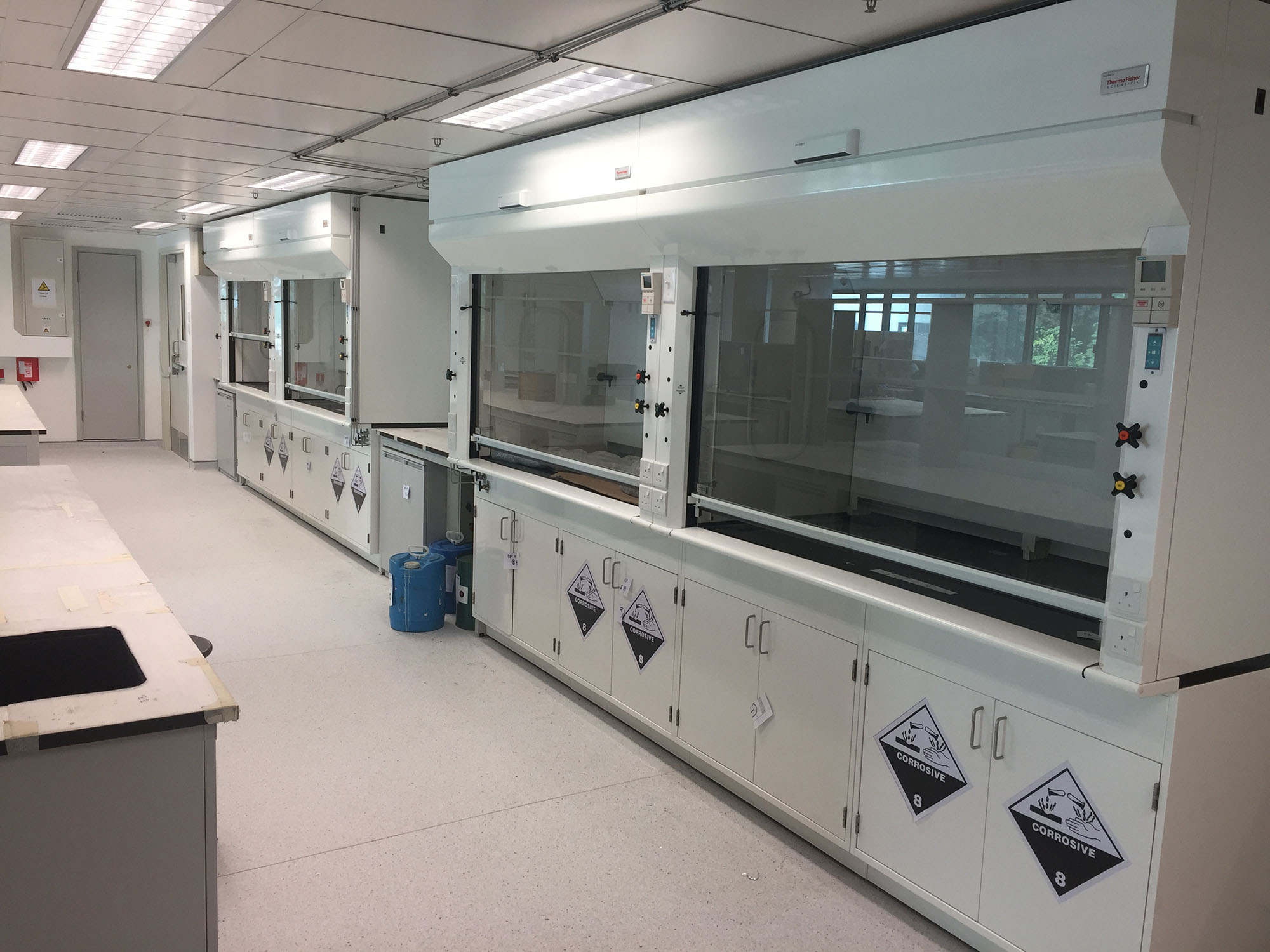

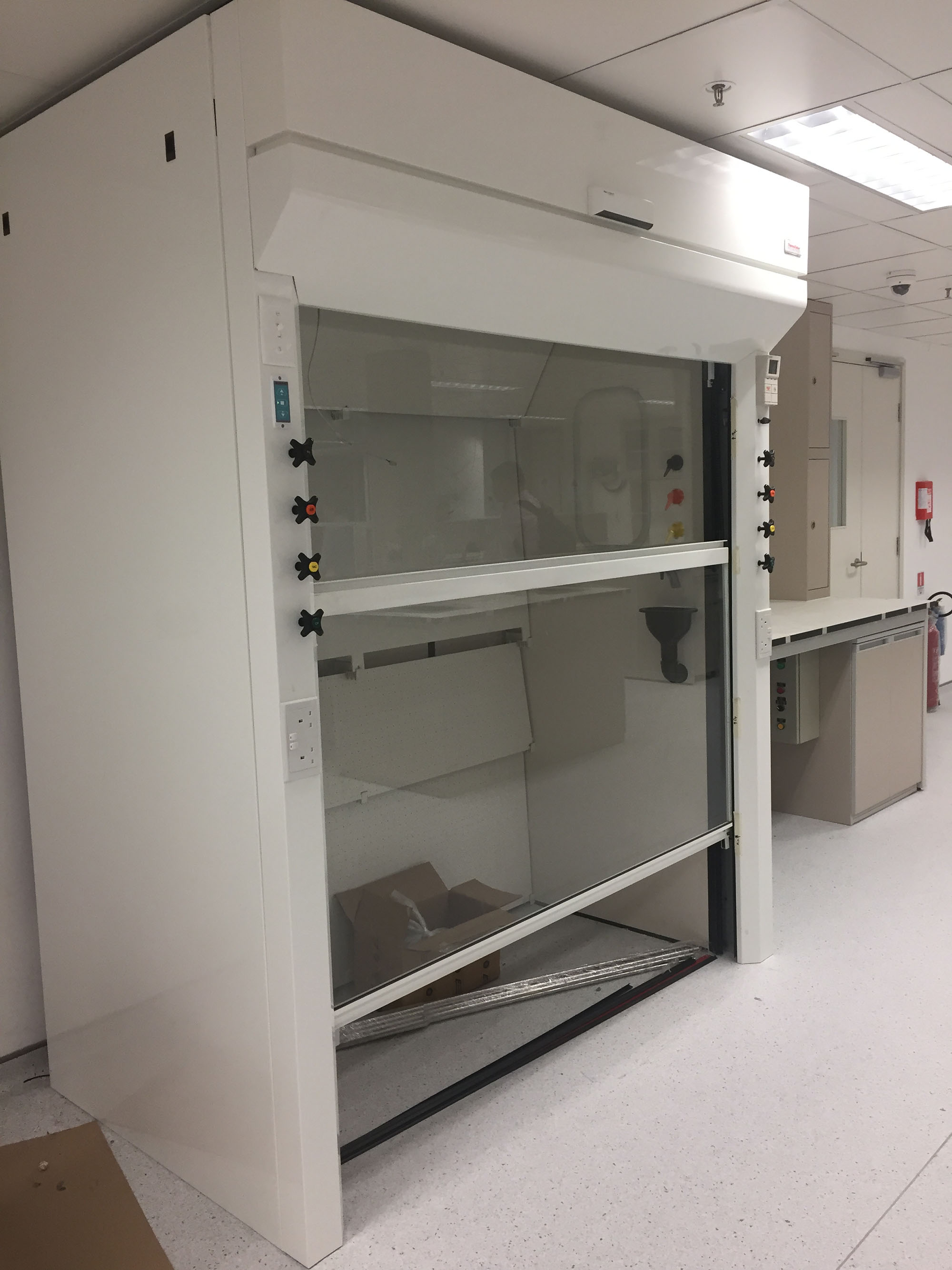

SEFA standard Fume Hood S-Grade High Quality Fume Cupboard

*1. Above are standard size, customized available.

2. Draught fan and pipeline are based on the installation site layout, excluded in the fume hood price.

S-grade fume cupboards are our top quality fume cupboards obey to SEFA，ASHRAE, ISO, CE standards.

2.Description:

Framework	made of 1.2mm steel, with electrolytic degreasing, pickling and phosphating, then electrostatic spraying with Akzo Nobel professional epoxy resin powder, coating thickness 0.07~0.09mm, has good performance of acid and alkali resistance and anti-corrosion.
Work top (Option)	expoxy resin. Chemical resistant board ceramic board are optional.
Inner lining:	made of laboratory professional phenolic compact laminate. Ceremic and other materials are optional.
Air deflector:	made of laboratory professional phenolic compact laminate. Ceremic and other materials are optional.
Base cabinet:	made of cold rolled steel, with electrolytic degreasing, pickling and phosphating, then electrostatic spraying with Akzo Nobel professional epoxy resin powder, coating thickness 0.07~0.09mm, has good performance of acid and alkali resistance and anti-corrosion.
Glass window:	tempered glass window can stop any place in the moving range.
Control plate:	LCD control plate, with control buttons include power switch, lighting, draught fan and indicator lights, equipment’s running conditions can be easily monitored on the control plate.

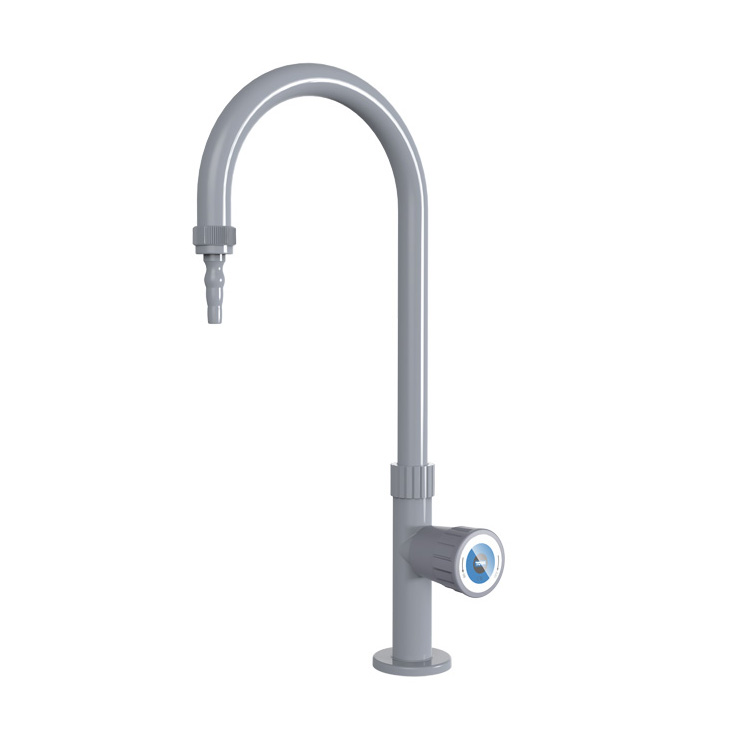

Water service parts:	PP sink, water faucet are optional.
fan	Draught fan and air duct are optional.
