C-Frame Steel-wood Island Bench.
- C-Frame Steel-wood workbench.
Standard Size:
Model Optional | Length (mm) | Width (mm) | Height (mm)
|
Model A | 3000 | 1500 | 850
|
Model B | 5000 | 1500 | 850
|
Customized model | Customized Length | 1500 | 850
|
*1. Customization available, most benches are customized base on room size.

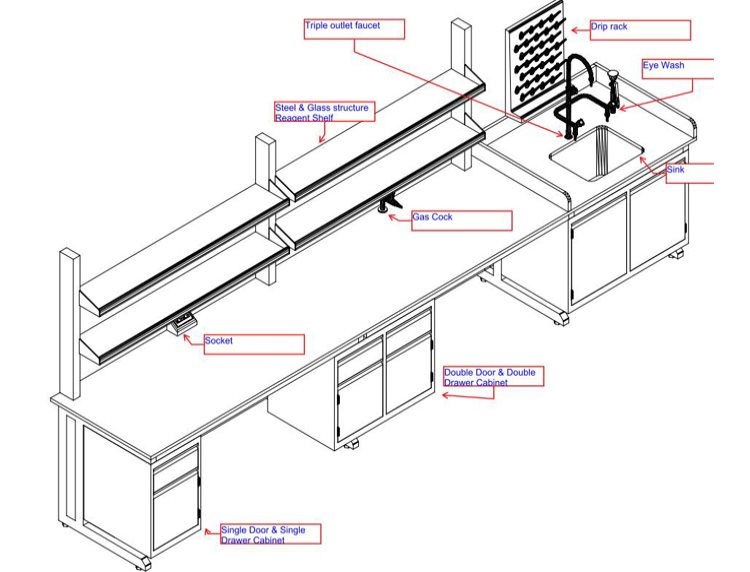

2. reagent shelf optional, overhead cabinet optional.
3. sink, water faucet, eye wash, drying rack optional.
4. socket available.
- Description:
Structure | C-Frame Steel-Wood Workstation Steel framework, Fashion style with simple installation and flexible budget |
Worktop | 1.Epoxide Resin (16/19/25mm thick) 2.Phenolic Resin (12.7/13/16/19/20/25mm thick) 3. 304 Stainless Steel work top |
Cabinet | -Cabinet are made of 18mm E1 GRADF MDF facing with melamine and edging with 2mm high quality PVC. |
Handles | Integrated with door and drawer |
Accessories（available） | |
Faucet | Brass body with ceramic valve core coated with epoxy resin powder. |
Sink | PP sink;ceramic sink; epoxy resin sink; 304 stainless steel |
Socket | Electric sockets, electrical trunking made of PVC and anchored to the shelf vertical supports |
Drip rack | Drip rack can be made in different shapes and material depending on their location and task. |
Reagent Shelf | The shelves are made of 1.2mm cold-rolled steel coated with epoxy resin powder. |
Lab Table Slider Option
Slider Option | Size and Soft closing | Bearing Capacity |
Regular Slider | 16 inch, Soft closing for option | 25 kg, 35 kg, 45 kg |
Undermounted Slider | 16 inch, soft closing, Push opening for option | 35 kg, 45 kg |
Heavy Bearing Slider | 16 inch, No soft closing | 45kg, 64 kg, 90 kg |
Worktop options
Lab Worktop Options | Regular Thickness | Regular Color | Application Industry |
Phenolic Resin Worktop | 12.7, 16,19,25 or customized | Black, Grey, White or Customized | University, Hospital, Testing Lab |
Epoxy Worktop | 15,16,19,20,25 mm | Black, Grey, White, blue | University, Hospital |
Ceramic Worktop | 20 mm | Black, Blue | University, Pharmaceutical, Research Lab |
Trespa | 13,16,20 mm | Black | Hospital, Research Lab |
Stainless Steel Worktop | 25 mm | Original Color | Microbiology Lab |
Marble | 40 mm | Black | Balance Table |
