Laboratory Island Bench
Model Optional | Length (mm) | Width (mm) | Height (mm)
|
Model A | 3000 | 1500 | 850
|
Model B | 5000 | 1500 | 850
|
Customized model | Customized Length | 1500 | 850
|
*1. Customization available, most benches are customized base on room size.
2. reagent shelf optional, overhead cabinet optional.
3. sink, water faucet, eye wash, drying rack optional.
4. socket available.
2.Description:
Structure | Floor Mounted Structure Made of 1.0 / 1.2mm thick cold rolled steel with Epoxiy resin coating |
Work top (Option) | 1.Epoxide Resin (16/19/25mm thick) 2.Phenolic Resin (12.7/13/16/19/20/25mm thick) 3. 304 Stainless Steel work top |
Cabinet | Made of 1.0/1.2mm thick cold rolled steel |
Handle | Integrated with door and drawer / Plastic / Aluminum alloy |
Optional Accessories | |
Faucet | Made of Brass with Epoxide resin Powder coating / stainless steel faucet |
Sink | PP sink / stainless Steel sink |
Gas cock | Made of Brass with Epoxide resin Powder coating / stainless steel faucet |
Socket | Different standard socket / spill proof socket |
Reagent shelf | Made of 1.2mm thick cold rolled steel and 12mm thick glass customized size |
Installation
Modular:
lab benches are modular design: base cabinets are welded and pre-assembled, benchtops are pre-proccessed, only need simple installation on site.

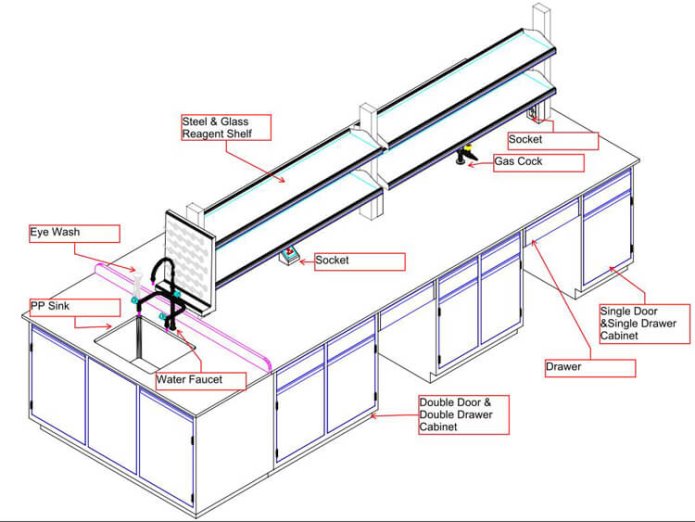

Drawing:
drawing will be shared and confirmed before production. Production and installation will be done strictly according to the drawing.
Guidance:
installation manual and video will be provided for guidance.
